WiFi Fan Coil Thermostat – Programmable Smart HVAC Controller with Modbus for Heating & Cooling

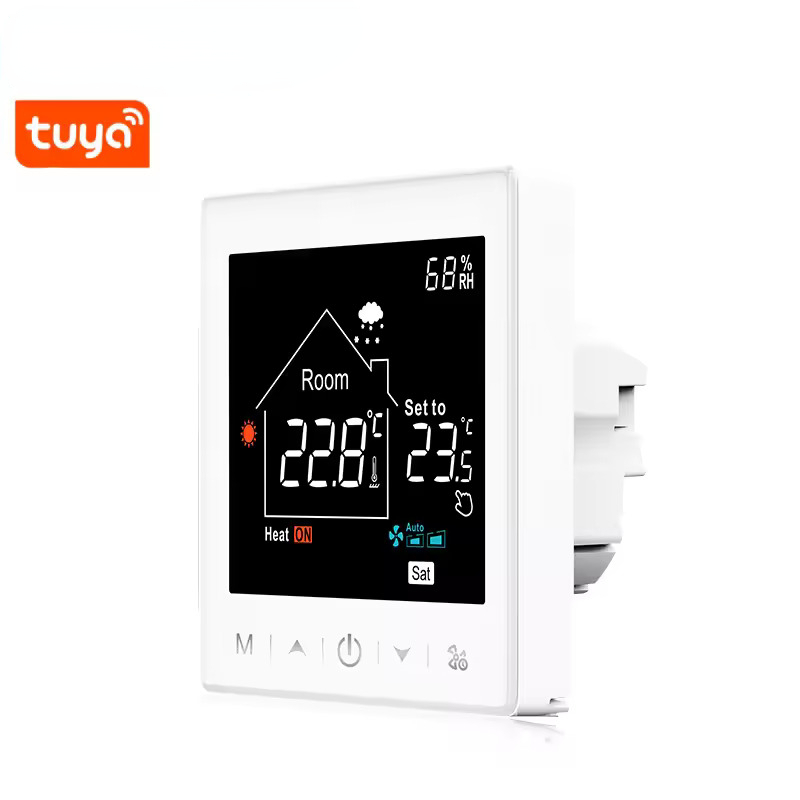

This Smart Thermostat controls air conditioning, fan coil unit, underfloor heating, and boiler remotely. It is equipped with a large screen with 5 touch keys. Support Wi-Fi remote control and optional Modbus RS485 central monitoring. A weekly personalized heating schedule can be pre-set with 6 events per day. Together with Power-off memory and one-touch ECO mode, it provides convenient temperature control for smart life.


Features & Benefits

² Smart Home Compatibility - Integrates with modern smart home systems.

² Modbus Support - Modbus connectivity allows the product to be used in a BMS.

² Remote Control - Offers convenience from anywhere.

² Large Display - Improves readability.

² Customizable Schedules - Allows for tailored heating times to enhance comfort and save energy.

² Easy Installation - Saves time and effort.

Specification

·       Application:  FCU, A/C, Underfloor Water Heating, Electric Heating, Boiler

·       Power Supply: ‎ 230 Volts

·       Communication:  Modbus RTU

·       Connectivity Tech: Wi-Fi

·       Control Type:  App / Voice / Touch Control

·       Programmable:  5+2 / 6+1 / 7 Days Programming

·       Sensor Type     :  Built-in & External 10k NTC Thermistor(optional)

·       Accuracy:  ± 0.5℃

·       Load:  3A / 16A

·       Material:  PC +ABS

·       Color:  White / Black

·       Dimension:  86*86*11.8 mm

·       Mounting:  Flush Mounting

·       Pitch of Holes:  60mm EU Standard

·       Certification:  CE / RoHS

·       Warranty： 2 Years

Please feel free to contact us if you need any further information.
